Bentogram Box Process
Fabrication | Industrial Design
Objective
Bentogram box is a hologram projector kit, which is can be bought at any toy store and allows you to build your hologram projector at home.
There are Pyramid and Z hologram.
Pyramid Hologram is able to show a video in 4 sides but the area to display the video is small.
Z hologram shows the images better by expanding the height between the base and the screen to place the glass screen at 45 degrees between the base and the projector or digital screen
My role
3D Modeling | 3D Print | Industrial Design
Tools
Rhino | 3D Printer.
Collaborator
N/A
Timeline
About 4 weeks
Challenge
Learn hologram technique
Explore using the 3D model and 3D print to design and create a Bentogram Kit
Outcome
It’s a practical experience to design on 3D model in Rhino and create a physical item by 3D printer.
Process

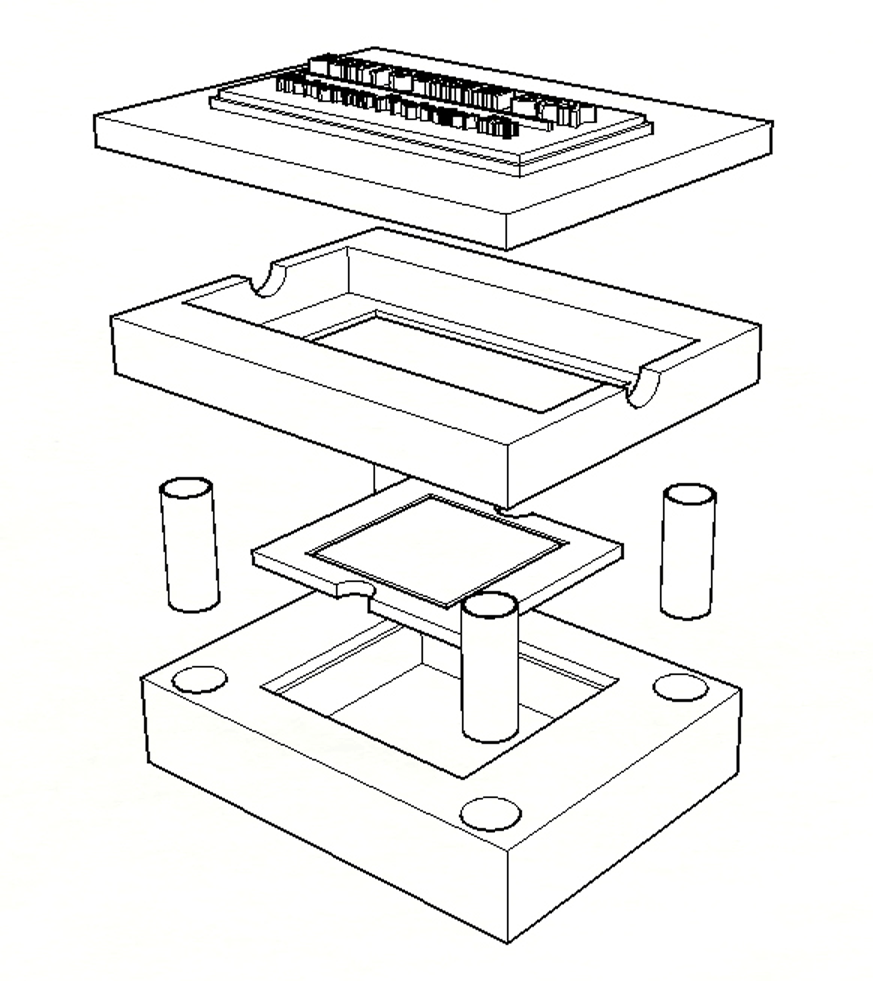

Sketch and physical dimension of Bentogram box
Print in 3D printer
